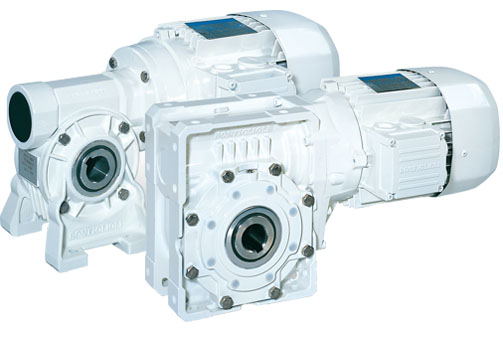

Wormgears and motors are also available in the enhanced protection “EP” configuration (Bonfiglioli gear motors for hostile environments), featuring food grade specifications and extra corrosion protection, allowing for cleanability and sanification after operation.
Besides the food processing, the EP configuration will also suit the requirements of the chemical and pharmaceutical industry as well as the marine on-board and quayside installations.
Applications
Food processing, chemical and pharmaceutical industry
Marine on-board and quayside installation
Corrosive and/or highly hygenic environments
Availability on
Gears: VF 44, VF 49, W 63, W 75, W 86
Motors: BN 63 … BN 112 / M1SD … M3LC
Standard Features
Stainless Steel Hollow Shaft
Stainless Stell Mounting Hardware and Tag
Oil Seals Loaded with Stainless Steel Spring
Sealed Gearcase (unvented)
Unused Tapped Holes Closed with Button Plugs
Four Draining Holes on Motor DE and NDE Shield
Motor Protection IP 56
Options
Epoxy Primer+Epoxy top Coating FDA
Washdown Duty Oil Seals
Food Grade Lubrificant, Class H1
Configurations
Foot, Flange and Shaft Mount
Accessories
Plug-in Solid Output Shaft from Stainless Steel
Safety Cover for the Hollow Output Shaft
Torque Arm
