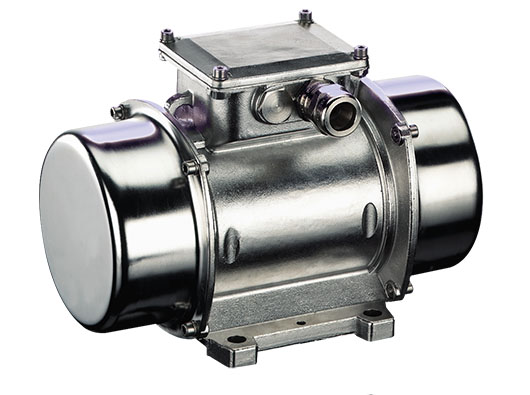

Italvibras CDX electric vibrators are explosion-proof vibrators designed for use in industrial processes in a potentially explosive atmosphere. The enclosure of the CDX vibrators is equipped with increased thickness and joints to prevent the transmission of an internal explosion to the surrounding area. The CDX series is characterized and enhanced by many different certifications, depending on the vibrator model.

Power supply
Three-phase voltage from 24V to 690V (limit at 600V for UL and CSA certification), 50Hz or 60Hz, or single−phase 100-130V 60Hz and 200-240V 50Hz (frame sizes 10,20,30); suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile.
Polarity
2, 4, 6 and 8 poles.
