From simple inverters, to standard or application inverters through to modular servo inverters: we offer a wide range of drive electronics for centralized installations. Simply install our drive or frequency inverters in the control cabinet or in the switch box on the mounting plate.

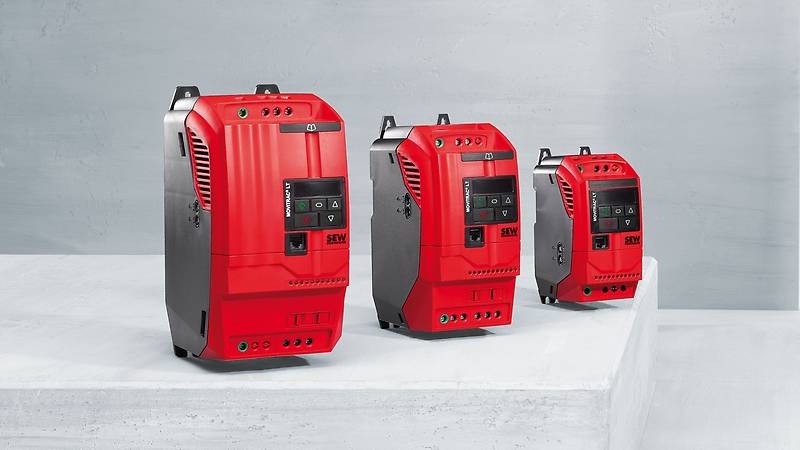

Sew Eurodrive MOVITRAC LTE-B basic inverters in IP20
Simple handling application and limited space in the control cabinet? Perfect conditions for our Sew Eurodrive MOVITRAC LTE-B basic inverters in IP20. Their compact design and range of functions make them ideally suited for controlling the speed of asynchronous motors.
Frequency Inverters that fit!
Our MOVITRAC LTE-B frequency inverters are characterized by a compact range of functions, simple handling and quick integration into your application. They are available in three sizes for power ranges from 0.37 kW to 11 kW and line voltages of 115 V, 230 V and 400 V.
Designed and developed for controlling the speed of asynchronous motors without an encoder, MOVITRAC LTE-B reliably implements your simple handling applications. These basic inverters offer economic advantages, particularly in small, modular conveyor lines, and in fans and pumps.
The standard version of MOVITRAC LTE-B for control cabinet installation is supplied with IP20 degree of protection. For field use, the MOVITRAC LTE-B frequency inverter supplied with IP66- field housing is the right solution.
Easy communication with all common fieldbus types; simply use DFx gateways.

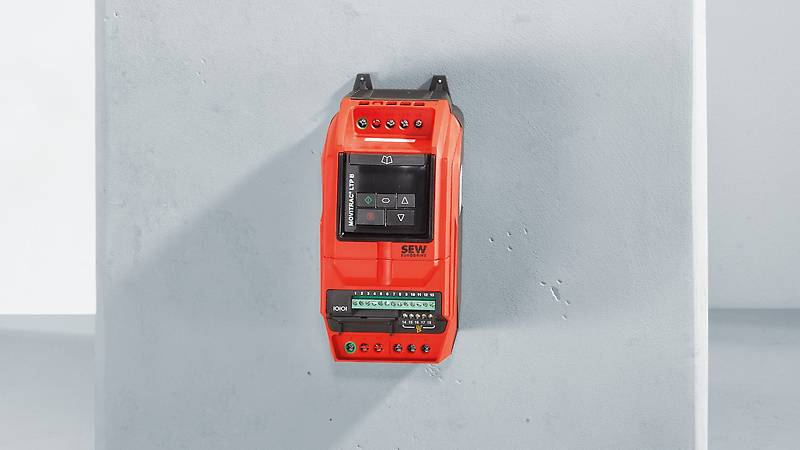

Sew Eurodrive MOVITRAC LTP-B standard inverters in IP20
It fits in any control cabinet and starts running straight away – the Sew Eurodrive MOVITRAC LTP-B standard inverters in IP20. Compact design and simplified handling give you a versatile range of possible applications and make startup quick.
Frequency inverters that make your life easier!
Connect, choose your motor, perform the automatic calibration and your application will just run and run. Designed and developed for open-loop speed control of synchronous and asynchronous motors, the MOVITRAC LTP-B with IP20 housing is available with up to 15 kW of power. This allows you to complete your tasks in conveyor applications, hoists, fans and pumps with a high level of energy efficiency – even without an encoder.
Why make it complicated when it could be so easy? That’s what we were thinking when we designed the range of functions and the operational principle for our MOVITRAC LTP-B series. The result? Compact functionality and an integrated control plate that makes handling easy for you.
Reduce your energy costs, not your power! Thanks to the energy saving function in the partial load rand and when idling.
And thanks to the STO (Safe Torque Off) safety function, these frequency inverters are not just safe and compact – they are also economical and efficient.
And if you also need wall-mounted frequency inverters, simply choose the design with IP55/NEMA 12 protective housing – with power ratings of up to 160 kW.

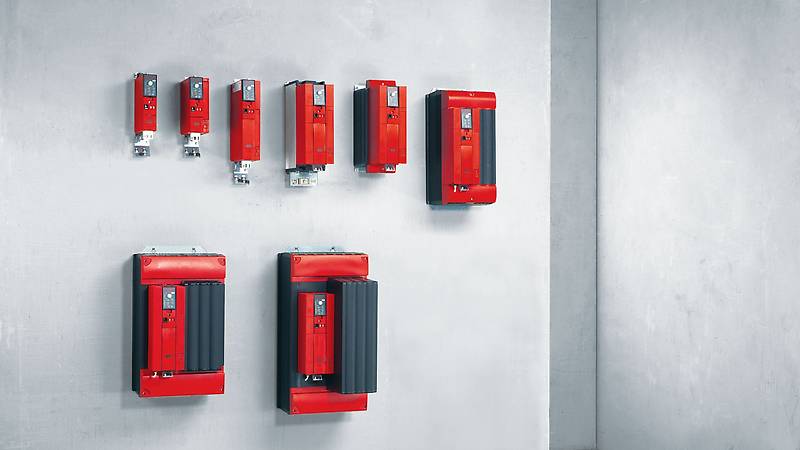

Sew Eurodrive MOVITRAC B standard inverters
Compact and versatile: Our Sew Eurodrive MOVITRAC B standard inverters have a sleek and modular design. And they are extremely versatile thanks to their wide power range.
Compact – versatile – safe
Time is money. The MOVITRAC B series frequency inverters help you save both. Their basic operation means that these standard inverters are quickly ready for use and perform your tasks extremely efficiently: from fan applications to materials handling and basic positioning.
Ideally suited for motors in our DR.. series, MOVITRAC B frequency inverters control the speed of asynchronous and explosion protected EDR.. motors.
You can use the standard MOVITRAC B design in materials handling, pump applications or in centrifuges.
Our modular concept with optional extensions and extensive accessories also gives you the flexibility to respond to specific requirements.

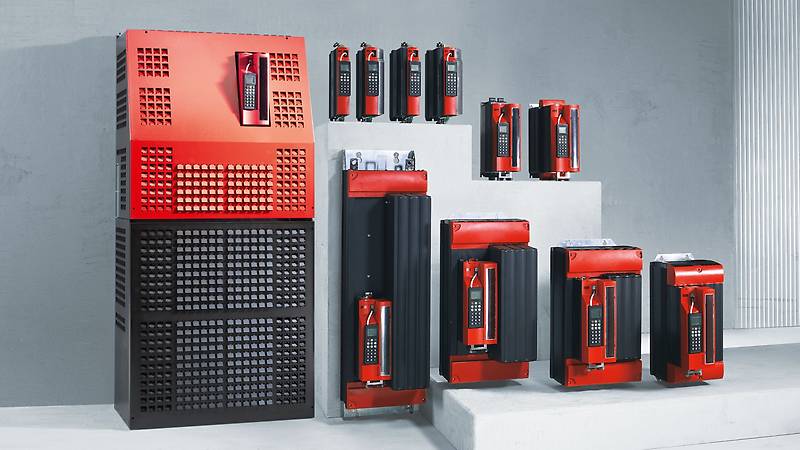

Sew Eurodrive MOVIDRIVE B drive inverters
Flexible, compact and intelligent: our Sew Eurodrive MOVIDRIVE B drive inverters. They save space in the control cabinet and are equipped with integrated positioning and sequence control as standard.
They control everything: MOVIDRIVE B drive inverters
Whether asynchronous AC drives or synchronous servo drives – the MOVIDRIVE® B drive inverters can control it. The broad power range from 0.55 kW to 315 kW, the fantastic overload capacity and the modular concept of the MOVIDRIVE B inverter help to improve the flexibility and efficiency of your applications.
The compact design of the MOVIDRIVE drive inverter saves space in the control cabinet, while its high user-friendliness ensures that you save time during parametrization, while the intelligent IPOS positioning and sequence control is included as standard.
A multitude of inputs and outputs in the drive inverter ensure a competent basic functionality. Optional communication and technology modules provide for quick and easy extension.

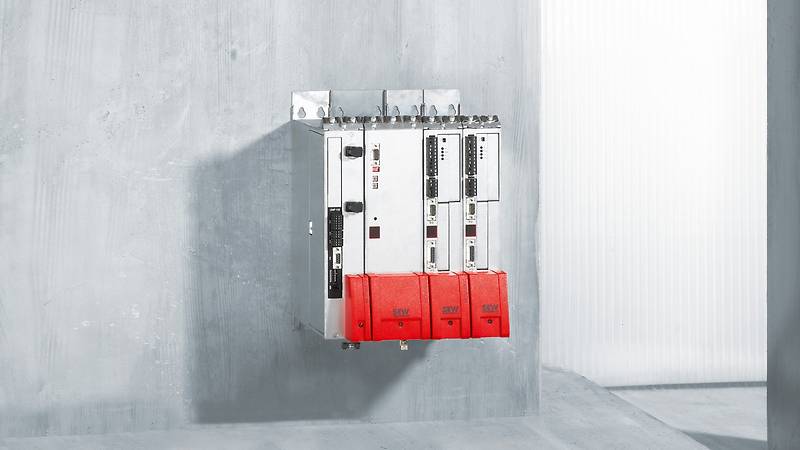

Sew Eurodrive MOVIAXIS multi-axis servo inverters
High performance for demanding applications. Our Sew Eurodrive MOVIAXIS multi-axis servo inverters is motion control at the highest level. MOVIAXIS: the right choice for control quality within demanding applications involving several electrical axes.
Powerful, modular and compact
Are you looking for a highly dynamic servo drive solution which meets your requirements with asynchronous or synchronous servomotors? Then take closer look at the MOVIAXIS multi-axis servo inverters.
Their versatility makes them so adaptable, from tiered motion control or simple positioning through to support of specific kinematics. MOVIAXIS can be flexibly and individually configured for your application and in a way which allows optimal adaptation to the machine and system concepts.
An axis system with MOVIAXIS always consists of a power supply module and a variable number of axis modules.
These also include optional modules such as master module, motion control or 24 V switched-mode power supply, which integrate perfectly within the servo solution both mechanically and electronically.
Also available are a wide selection of communication and automation options as well as energy-efficient components such as the energy storage unit. And MOVIAXIS of course supports all common encoder systems on the motor and track.
MOVIAXIS multi-axis servo inverter – solutions for the future:
Maximum control quality in a compact design in the power range from 10 kW supply system and up to 187 kW peak power.

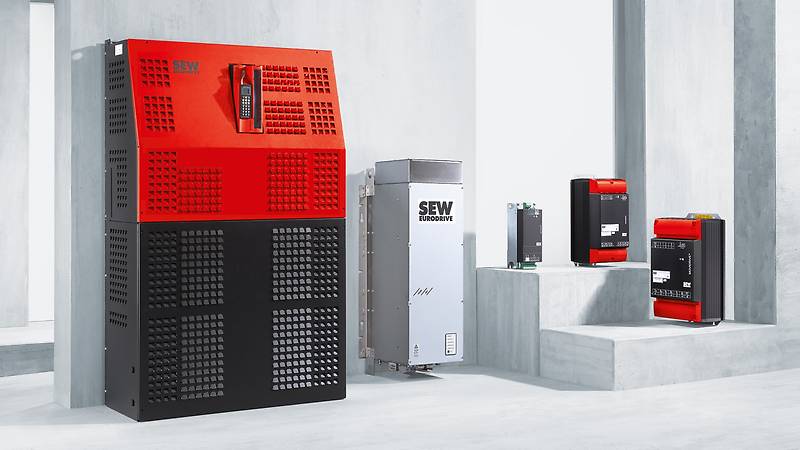

Sew Eurodrive MOVIDRIVE MDR regenerative power supply units
Recycle energy and save costs! Simply use the potential energy from the lowering and braking movements of your application. Our Sew Eurodrive MOVIDRIVE MDR regenerative power supply units take care of the rest, they feed the recovered energy back into the supply system.
Energy recycling = cost savings
Is potential energy from lowering and braking movements converted into waste heat in your applications?
Put a stop to that!
Use our MOVIDRIVE MDR regenerative power supply units to harness the regenerative energy of your drives. The MOVIDRIVE MDR regenerative power supply unit acts as a centralized supply and regenerative power supply unit for the connected inverters.
They can be used in combination with our MOVIDRIVE B drive inverters and MOVITRAC B frequency inverters.
Several inverters can be connected to the MOVIDRIVE MDR in a DC link connection. No braking resistors – no waste heat, instead braking energy is fed back into the supply system.
