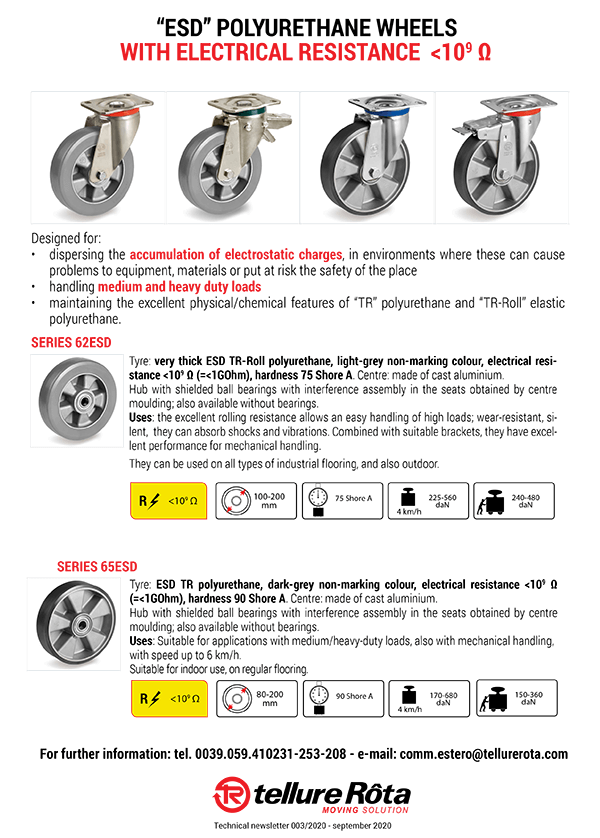

ESD polyurethane wheels with electrical resistance <10^9 Ohm
Designed for
- dispersing the accumulation of electrostatic charges in environments where these can cause problems to equipment or put at risk the safety of the place.
- handling medium and heavy duty loads
- maintaining the excellent physical/chemical features of “TR” polyurethane and “TR-Roll” elastic polyurethane.

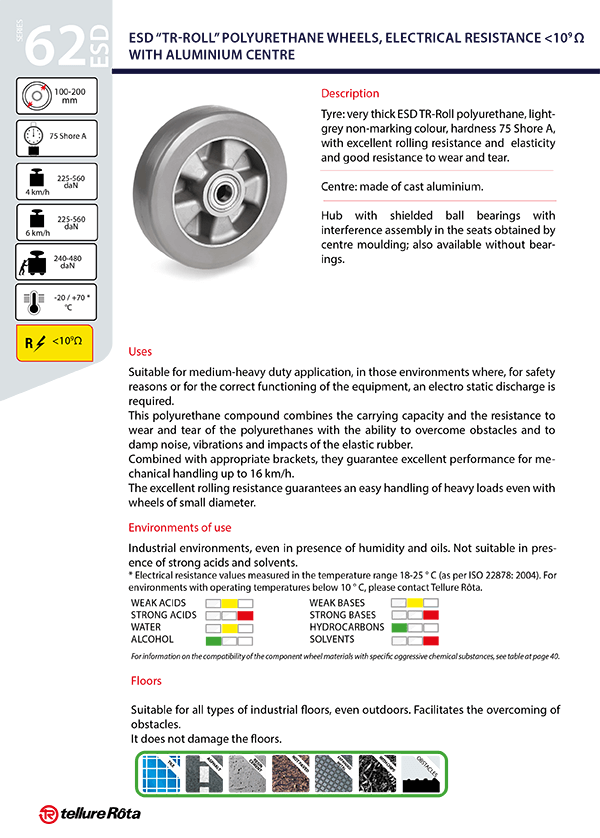

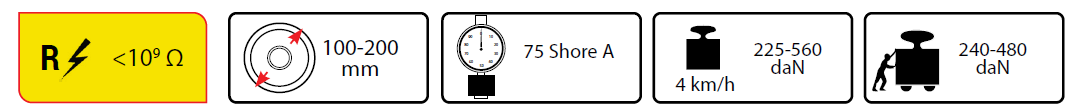

SERIES 62ESD
Tyre: very thick ESD TR-Roll polyurethane, light-grey non-marking colour, electrical resistance <10^9 Ω (=<1GOhm), hardness 75 Shore A. Centre: made of cast aluminium.
Hub with shielded ball bearings with interference assembly in the seats obtained by centre moulding; also available without bearings.
Uses: the excellent rolling resistance allows an easy handling of high loads; wear-resistant, silent, they can absorb shocks and vibrations. Combined with suitable brackets, they have excellent performance for mechanical handling. They can be used on all types of industrial flooring, and also outdoor.
SERIES 65ESD
Tyre: ESD TR polyurethane, dark-grey non-marking colour, electrical resistance <10^9 Ω (=<1GOhm), hardness 90 Shore A. Centre: made of cast aluminium.
Hub with shielded ball bearings with interference assembly in the seats obtained by centre moulding; also available without bearings.
Uses: Suitable for applications with medium/heavy-duty loads, also with mechanical handling, with speed up to 6 km/h. Suitable for indoor use, on regular flooring.
