Tecnica Industriale designs and manufactures conveyor belts based on the customer’s design or on its own project. Extensible idle conveyors with wheels or rollers, motorized conveyors with roller shutter chains or with PVC belts or rollers. The considerable experience in the sector allows us to create customized conveyor belts for world-renowned manufacturers in the most varied technological sectors.

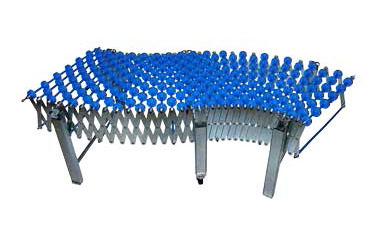

Extensible conveyor belt
The extendable idle conveyor has been designed to meet the different needs of product handling. The same object, in fact, can be used for straight or curved sections, as it is built with systems that allow maximum flexibility both in length and height and also in the radius of curvature (the values are shown in the technical table). The idle elements that make up the sliding surface are mainly of three different types: plastic wheel diameter 48 mm, steel wheel diameter 48 mm, steel roller diameter 30 mm.
The use of the extendable conveyor with wheels is recommended for the sliding of materials with flat surfaces; the rollers are instead suitable for heavier packages and with support surfaces with ridges or ribs. For greater ease of positioning, the conveyor is equipped with two wheels placed in the center and equipped with a braking system (on request). The supporting structure is mounted on telescopic bases that make it possible to adjust the height of the sliding surface and is normally made of galvanized steel. On request available in stainless steel.

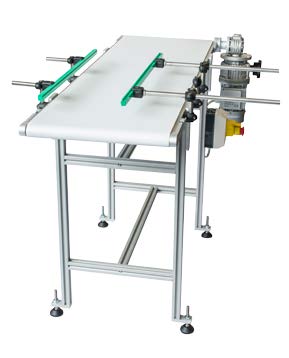

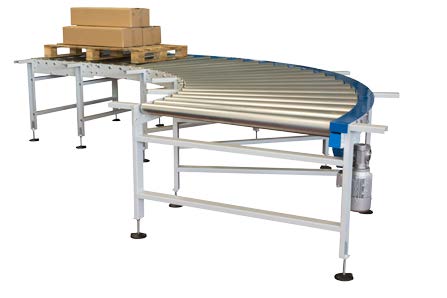

Straight and curved motorized conveyors
We are able to realize any type of motorized conveyor: with rollers, with belt or with roller shutter chains. The impossibility of reporting a specific technical table is due to the wide range of choices that the market requires based on the size, speed, type and weight of the product to be transported. We have the solution for all types of transport: straight, curvilinear and inclined plane. Contact us, our technical office is at your disposal to study together the most suitable solution for your needs.
Conveyor rollers in sheet metal
Our technicians are available for further clarifications for the right choice of roller according to needs. On request available covered with various materials: rubber, pvc, gripp.
