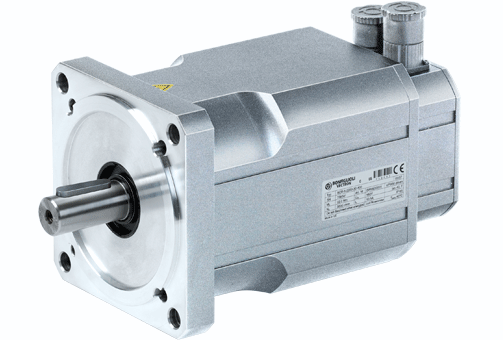

Bonfiglioli high performance servo motors are designed to satisfy the needs of continuous and transient high torque applications.Thanks to a wide torque range and above average instantaneous overload ratings, BCR servomotors are robust enough for even the most demanding drive applications.Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity to EMC requirements, and with a PTC temperature probe with reinforced insulation, these motors guaranteea secure electrical connection under all ambient operating conditions.
Stall torque
0,2 Nm … 115 Nm
Rated speed
2000, 3000, 4500 rpm
Power supply
230, 400 Vac
Inertia
Low for BCR sizes from 0.2 Nm … to 1 Nm
Bonfiglioli high performance servo motors
Conformity
2006/95/EC (LVD) and 2004/108/EC (EMC)
DC brake
Optional 24 Vdc
Certification
CE, UL
