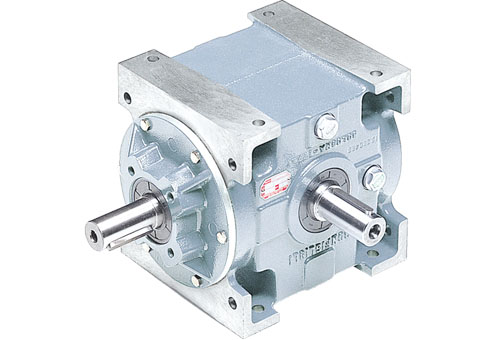

The units of the RAN – Bonfiglioli bevel gears are designed to fit the purpose of transmission laid out in right angle setting. Easy to fit and almost maintenance-free, RAN units offer multiple shaft arrangements and a choice of several exact gear ratios, beside the 1:1, that come handy when designing synchronized drive system. Also available in the version for screw jack duty.
Torque Range
3 Nm… 3.000 Nm
Mechanical Rating (n1= 1400 min-1)
0.15 kW … 91 kW
Gear ratios
1,0 … 7,4
Shaft Arrangement
Single or Double Shaft Projection
Input
Solid Input Shaft
Bonfiglioli helical gear motors
RAN 1 / RAN 2 / RAN 2R
Input
Solid-Single and Double Projection
Output Shaft
Keyed Hollow
Gear Ratios
i = 3
Rated Thrust Capacity
RAN 1 50.000 N
RAN 2 80.000 N
RAN 2R 150.000 N
