The newly expanded range of APEX hose pumps is ideal for aggressive and abrasive applications up to 8bar. With their seal-less, valve-less design, APEX pumps are engineered for a more competitive price/performance ratio vs high pressure hose pumps. Designed to suit all dosing, metering and transfer applications with unmatched flow stability from 0.7-1,640 gal/hr (2.8-6,200 l/hr), the APEX 10, 15, 20. 28 and 35mm pumps offer users many important benefits.
Seal-less, valve-less design
Increased process uptime
Long service intervals
Direct-coupled drive and maximum flexibility
Lower maintenance costs
The APEX pump incorporates Bredel’s long proven direct-coupled technology, delivering the most reliable pump design in a compact footprint.
While the APEX gearbox mounts directly to the pump housing, the APEX pump rotor is supported by its own sealed bearing hub, isolating and protecting the gearbox from integral forces.

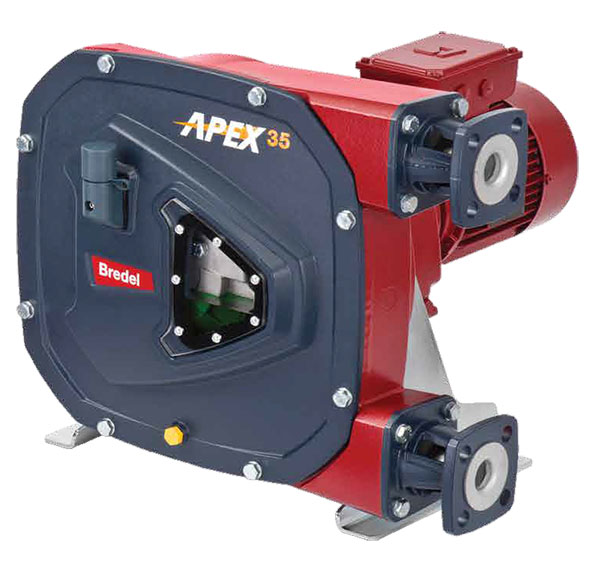

APEX hose pumps
The APEX pump range from Bredel has set the standard for lowering acquisition, operating and maintenance costs for low to medium pressure applications. Higher flows per revolution means APEX pumps can be run at lower speeds, increasing hose life and reducing wear. Compared with other pump types, APEX uptime periods are significantly longer.
