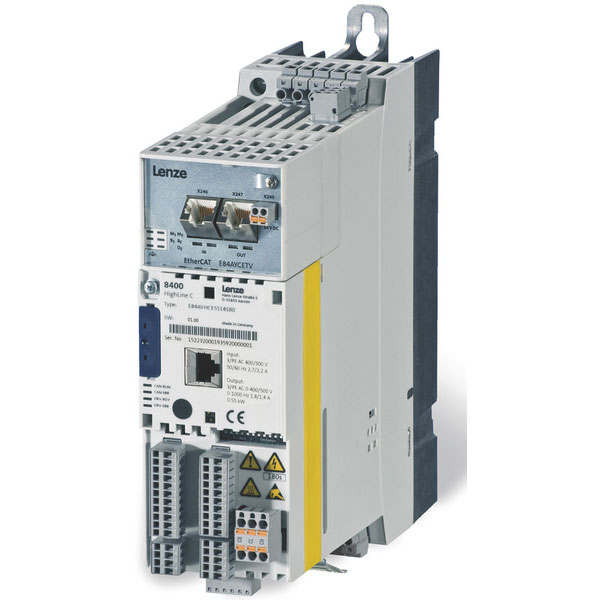

Lenze frequency inverters 8400 HighLine for easily controlled motion and positioning.
Performance data:
Mains: 1 AC 230/240 V: 0.25 to 2.2 kW / 1.7 to 9.5 A
Mains: 3 AC 400/500 V: 0.37 to 45 kW / 1.0 to 89 A
Particularly suitable for: rotary indexing tables or warehousing systems in the field of intralogistics, bag form fill and seal machines in the packaging industry.
Advantages:
Connections: start/stop, analog inputs/outputs (2/2), freely programmable digital inputs/outputs (7/4)
Communication: CANopen on board, EtherCAT, EtherNet/IP, POWERLINK, PROFIBUS, PROFINET
Suitable for drive applications with or without speed feedback
Integrated positioning control
Up to 15 selectable positioning points included each of the corresponding travel profiles
Integrated brake management
“VFC eco” energy-saving function
STO safety function
