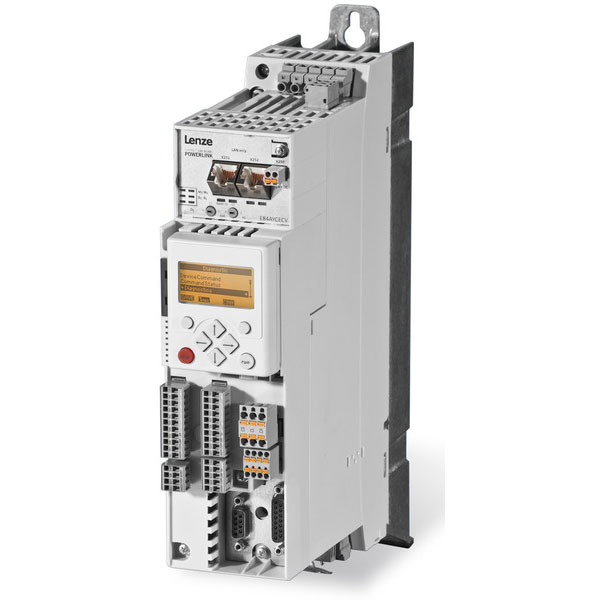

Lenze frequency inverters 8400 TopLine for controlled, dynamic motion.
Performance data:
Mains: 1 AC 230/240 V: 0.25 to 2.2 kW / 1.7 to 9.5 A
Mains: 3 AC 400/500 V: 0.37 to 45 kW / 1.0 to 89 A
Particularly suitable for handling and positioning systems as well as travelling drives and hoist drives used in a wide variety of application areas. Also the ideal choice for synchronous drives, e.g. in continuous material processing applications.
Advantages:
Connections: start/stop, analog inputs/outputs (2/2), freely programmable digital inputs/outputs (7/4)
Resolver and multi-encoder input
Communication: CANopen on board, EtherCAT, EtherNet/IP, POWERLINK, PROFIBUS, PROFINET
Also supports synchronous motors
Axis bus for electrical shafts
Integrated brake management
“VFC eco” energy-saving function
STO safety function
